• Automate your assembly line with loaders, unloaders, inline conveyors, and more.

    We supply you complete electronic production Lines on your given budget!

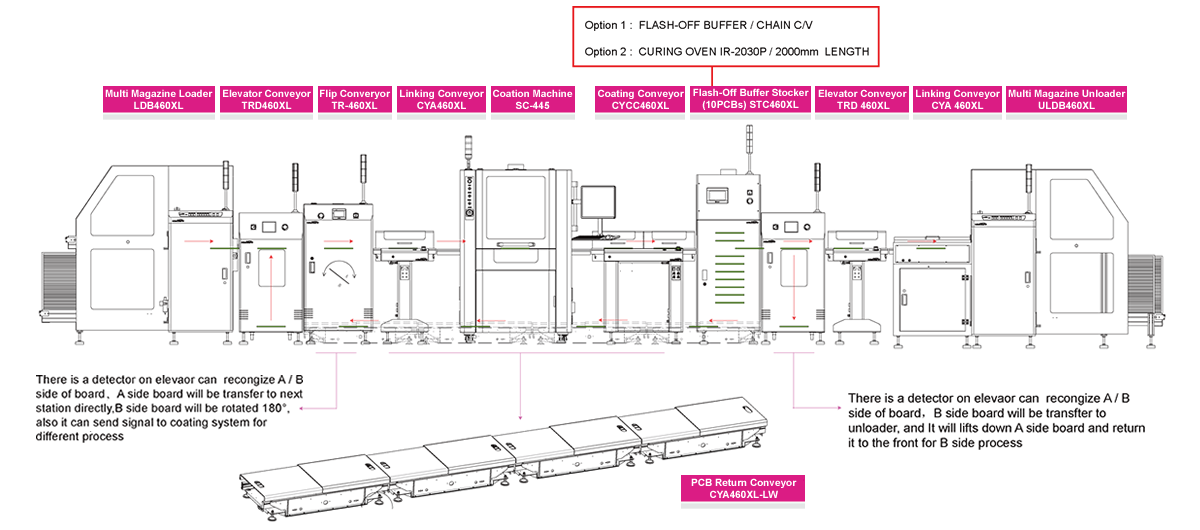

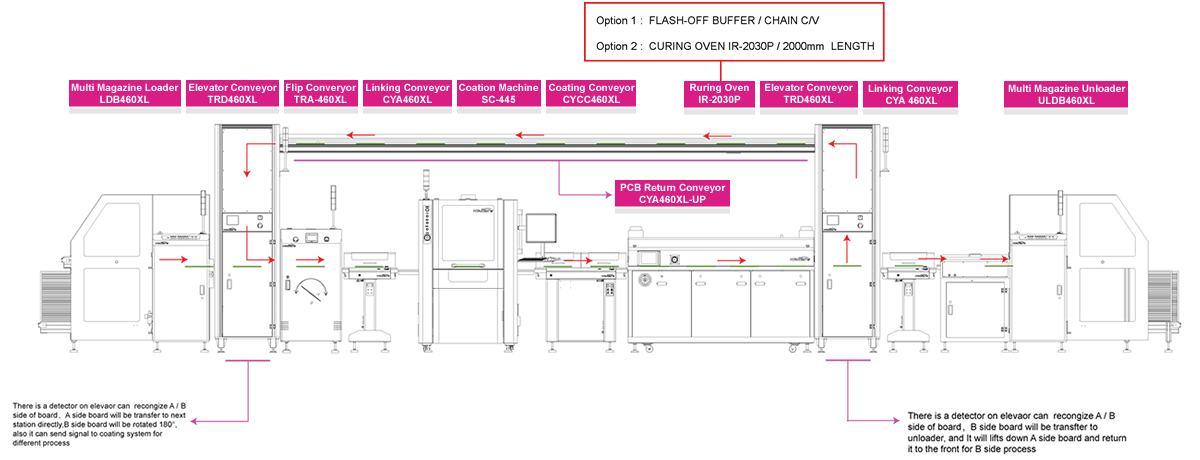

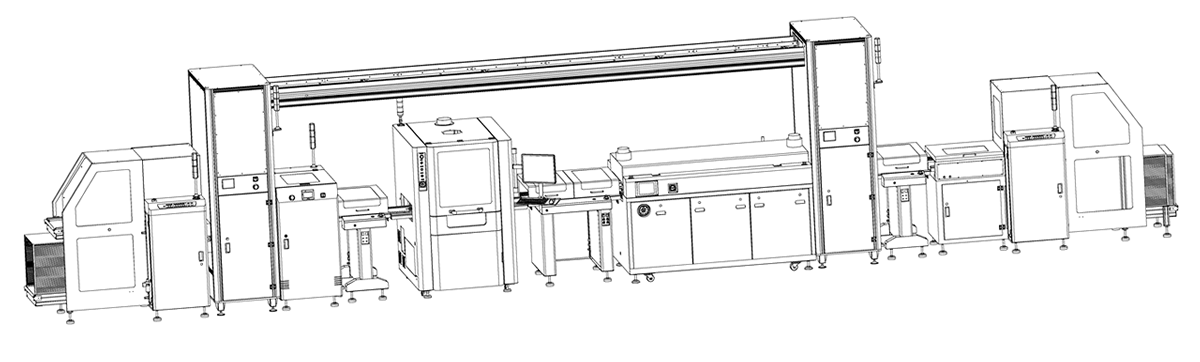

Conformal Coating Line

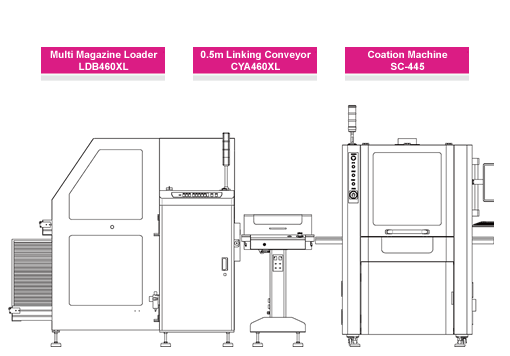

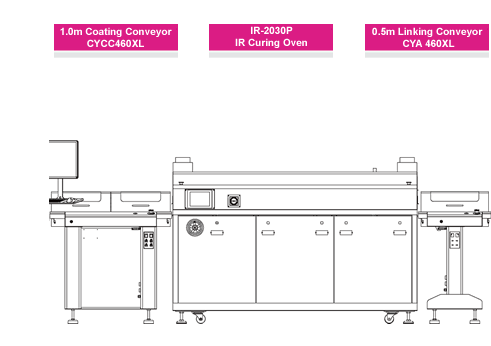

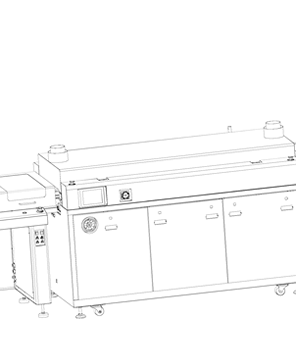

  • 1Clicksmt supply you complete conformal coating line, starting our product range with Coating machine, IR Curing oven and PCB Board Handling.

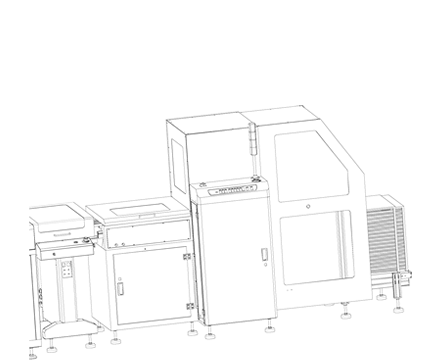

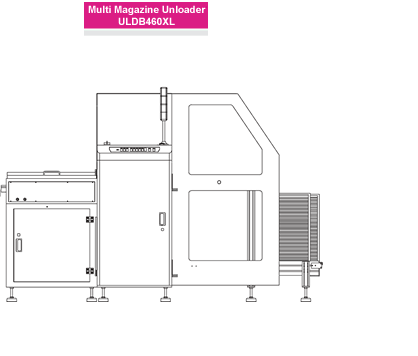

  • 1CLICKSMT PCB HANDLING SYSTEM
    1Clicsmt offers a wide variety of pcb handling equipment.

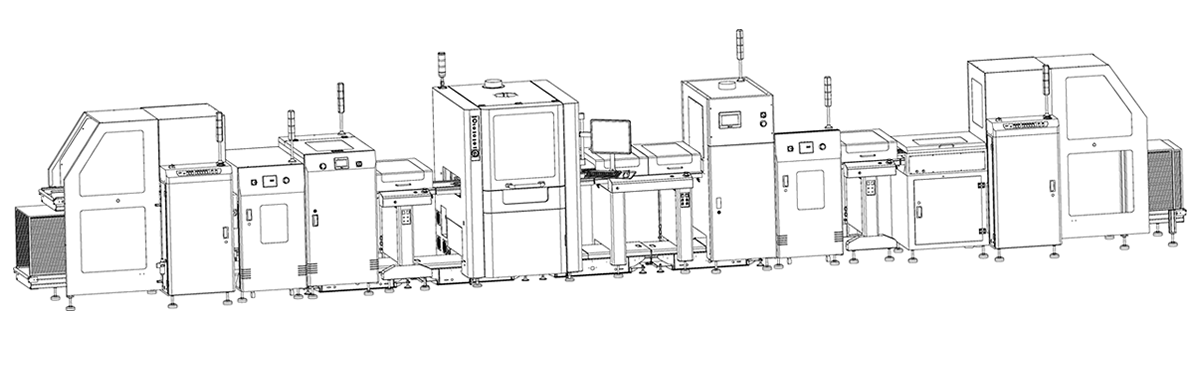

    Customozied Conformal Coating Line

  • 1Clicksmt does not just offer popular solutions , many other design possibilities also exist , We’ll help you to build a optimized  and effective Manufacturing process.
  • Flexible

    Each unit can be linked to others in the system by utilizing their upstream and downstream SMEMA communications.

    Safety & CE

    All units have ESD safe designs, and are CE marked. Until now ,at least 600 of our PCB handlers were used in Europe.

    Service & CE

    With experienced engineering team, provide customer installation & training & service, With spare parts stock in Europe and USA local team.

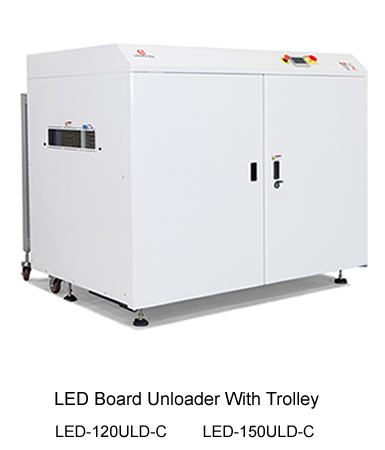

    Long-Board (LED) SMT Assembly Line

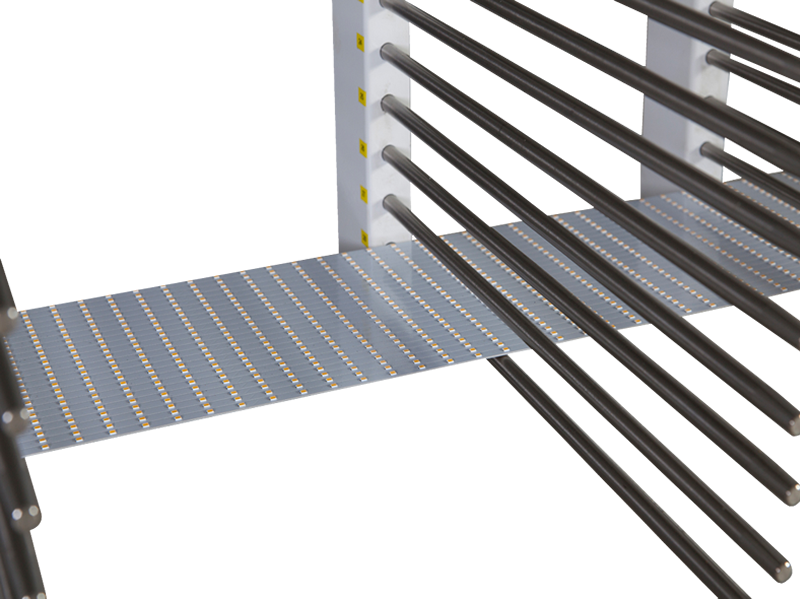

  • We supply PCB handling modules with sizes up to 1500 x 500 mm!
  •



    Long Board Production Video
    Video of Total Line Solution Long-Boa

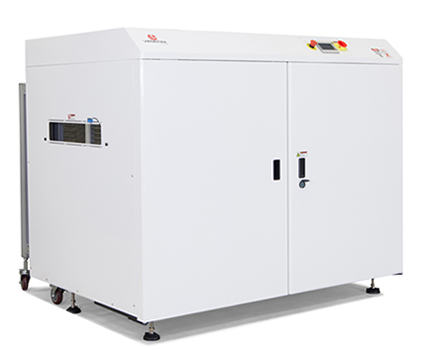

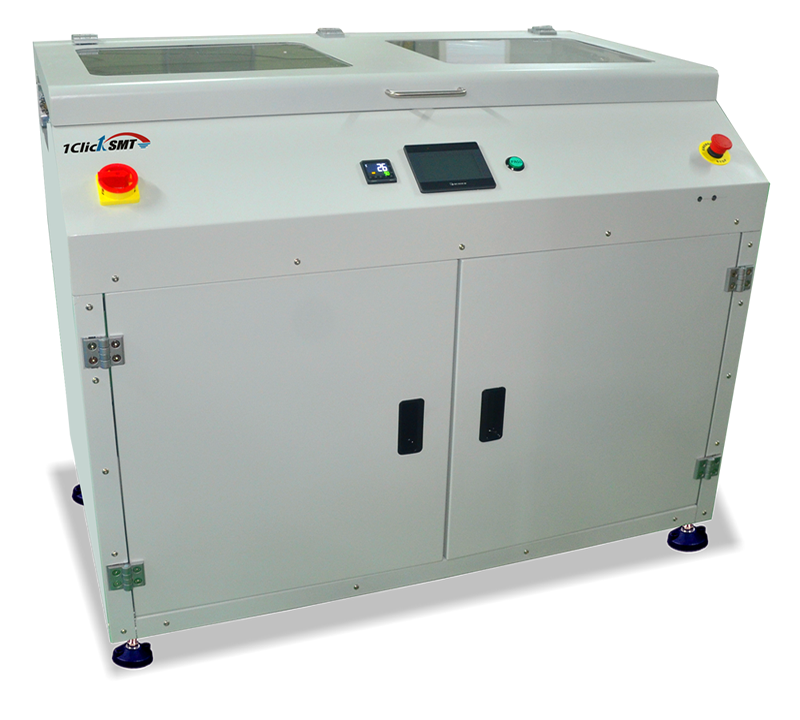

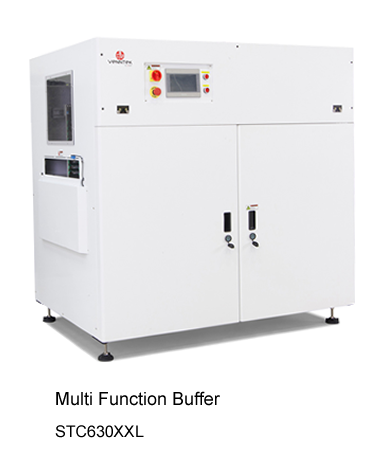

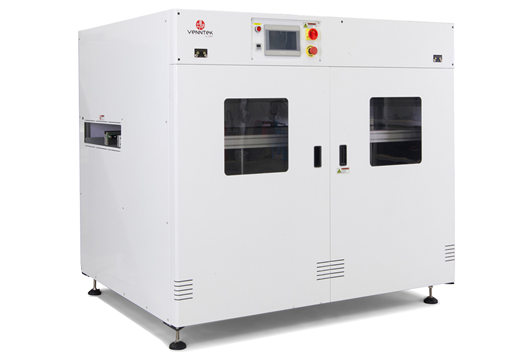

    PCB to/from the buffer a drive mechanism engages with the belt segment to smoothly transfer the PCB in-or out.


  • Standard Features
  • Pannasonic PLC Program control.
  • Selectable FIFO, LIFO and by-pass mode.
  • Selectable pitch settings.
  • Enclosed construction with lifting door improve level of safety.
  • The status of each slot can be changed independently.
  • Conveyor width adjustment using hand wheel.
  • Threshold signal to protect PCB's in upstream oven.
  • Touchscreen control panel.
  • Towerlight display for machine status.
  • SMEMA compatible.
  •
  • Technical Specifications
  • Transport height:
  • 950mm ±30mm
  •
  • Transfer direction:
  • Left to right
  • Operation side:
  • Front of the machine
  • Fixed rail:
  • Front of the machine
  • Interface:
  • SMEMA
  • Conveyer concept:
  • ESD flat belt
  • Belt speed:
  • 0.5-20m/min adjustable
  • PCB edge support:
  • 10mm
  • Power supply:
  • 230 VAC/50 Hz/1 Ph
  • Power consumption:
  • 250 VA max
  • Air supply:
  • 4-6 bar
  • Air consumption:
  • 15 ltr/min max
  • Cycle time:
  • ±15 seconds
  • Pitch distance:
  • 20mm or specify
  • Buffer capacity:
  • 20 PCBs or specify
  • Opions
  • Additional board buffering capacity.
  •
  • Reject mode for buffering bad board.
  •
  • Automatic conveyor width adjustment.
  •
  • Input - or output conveyor (length 500 mm or specify).
  •
  • Other options available on request.
  •

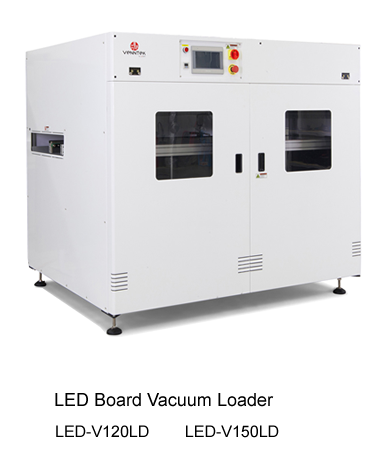

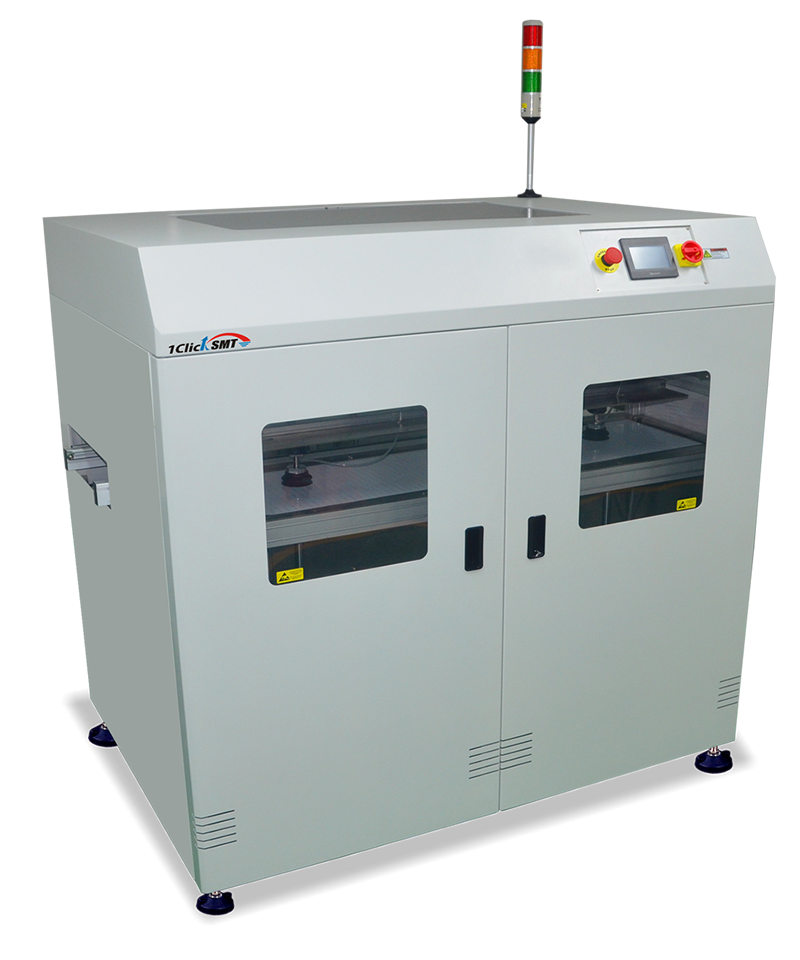

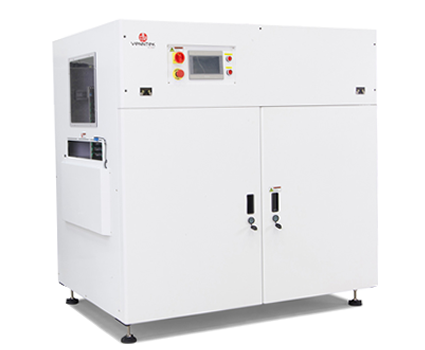

  • This unit allows buffering of LED board 's in FIFO,LIFO and Pass-through mode. It uses belt segments to hold the PCB over its complete lenght. When adding or extracting a PCB to/from the buffer a drive mechanism engages with the belt segment to smoothly transfer the PCB in- or out.
  • Standard Features
  • Pannasonic PLC Program control.
  • Large stock capacity.
  • Empty stack sensor.
  • Flexible suction cup positioning.
  • Convenient front door stack loading.
  • Towerlight display for machine status.
  • Automatic width adjustment.
  • Conveyig speed & timeout can set on touchscreen.
  • By-pass mode selectable without removing PCB stack.
  • SMEMA compatible.
  • Technical Specifications
  • Transport height:
  • 950mm ±20mm
  •
  • Transfer direction:
  • Left to right
  • Operation side:
  • Front of the machine
  • Fixed rail:
  • Front of the machine
  • Interface:
  • SMEMA
  • Conveyer concept:
  • ESD belt (flat belt)
  • Belt speed:
  • 0.5-20m/min adjustable
  • PCB edge support:
  • 10mm
  • Power supply:
  • 230 VAC/50 Hz/1 Ph
  • Power consumption:
  • 450VA max
  • Air supply:
  • ≥6 bar
  • Air consumption:
  • 30 ltr/min max
  • Diameter suction pads:
  • 60mm or specify
  • PCB thickness capability:
  • 1.0-4.0mm
  • PCB stock capability:
  • 200mm or specify
  • Opions
  • Additional board stocking capacity.
  •
  • Other options available on request.
