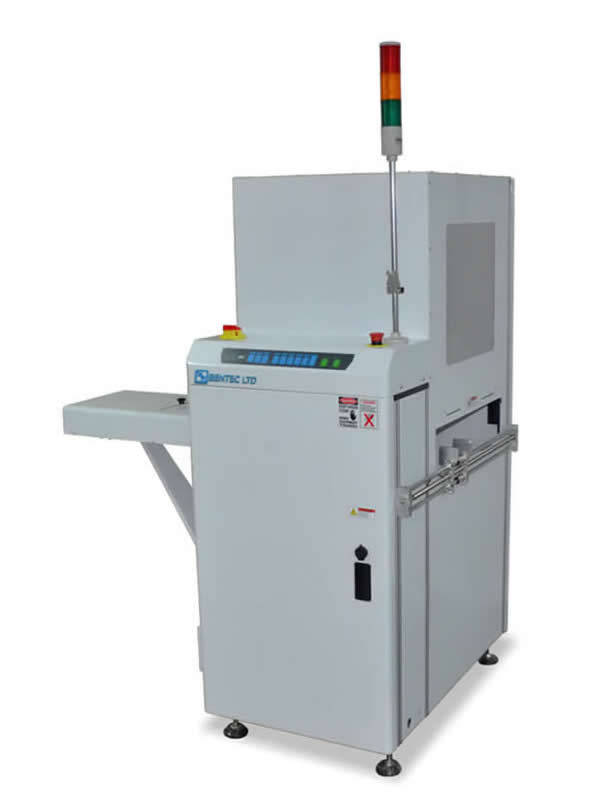

Single Magazine Loader

The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.

● Panasonic PLC Program control.

● Selectable pitch settings.

● Flexible platform to suit standard magazines.

● Exchange magazine from the rear of the machine.

● Regulated pressure on attached pneumatic pusher.

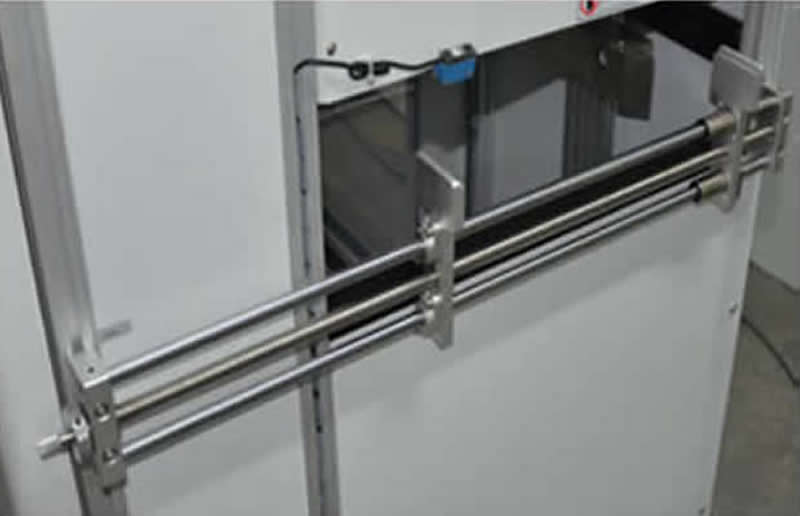

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● Magazine is manually placed on the platform and clamped in position.

● SMEMA compatible.

● Transport height: 950mm ±30mm

● Transfer direction: Left to right

● Operation side: Front of the machine

● Fixed rail: Front of the machine

● Interface: SMEMA

● Power supply: 230 VAC/50 Hz/1 Ph

● Power consumption: 240VA max. or specify

● Air supply: ≥6 bar

● Air consumption: 10 ltr/min max.

● PCB loading time: ±6 seconds

● Pitch distance: 10.20.30.40mm pitch or specify.

● Total number of magazines: * 1 mgazine on the lifter platform.
* or specify

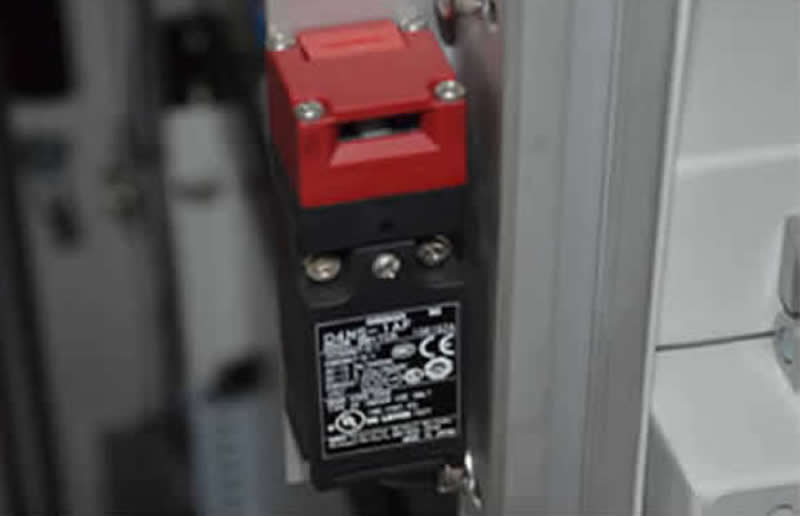

● Touchscreen instead of button panel.

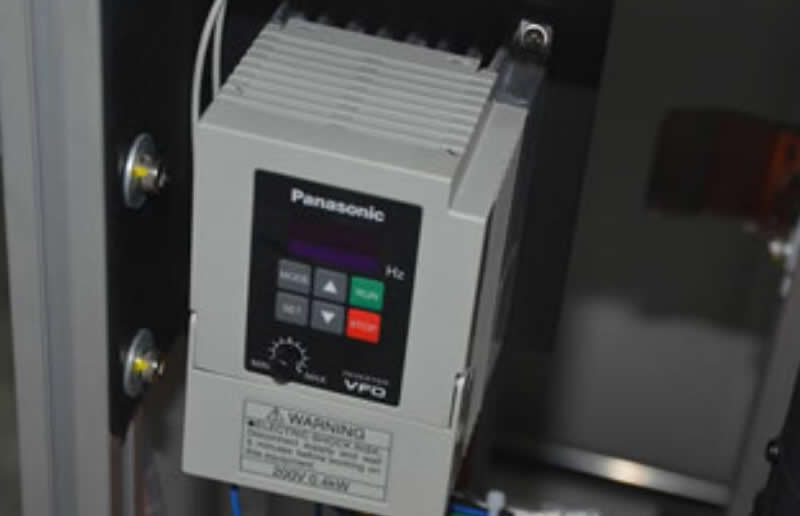

● Other options available on request.

Options

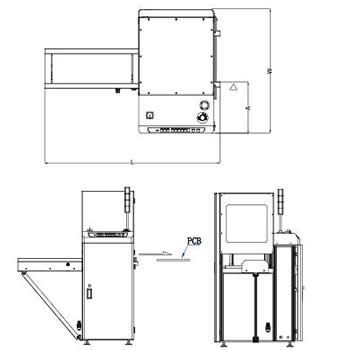

Model	LDA250M	LDA330L	LDA390LL	LDA460XL
Machine Dimension (L x W x H)	1250 x 800 x 1700	1350x 915 x 1700	1480 x 1000 x 1700	1480 x 1080 x 1700
Weight	180kg	215kg	250kg	285kg
PCB length	50mm - 330mm	50mm - 445mm	50mm - 530mm	50mm - 530mm
PCB width	50mm - 250mm	50mm - 330mm	50mm - 390mm	50mm - 460mm
PCB Thinckness	0.6mm - 4.5mm	0.6mm - 4.5mm	0.6mm - 4.5mm	0.6mm - 4.5mm
Magazine Dimensions (max.)	355 x 320 x 563	460 x 400 x 563	535 x 460 x 573	535 x 530 x 570
Fixed rail to front dimension(A)	330mm	330mm	330mm	330mm
